Stereo Tracking and Camera Solve

This example shows how a stereo camera pair can be tracked and solved using the Stereo Camera Solver node

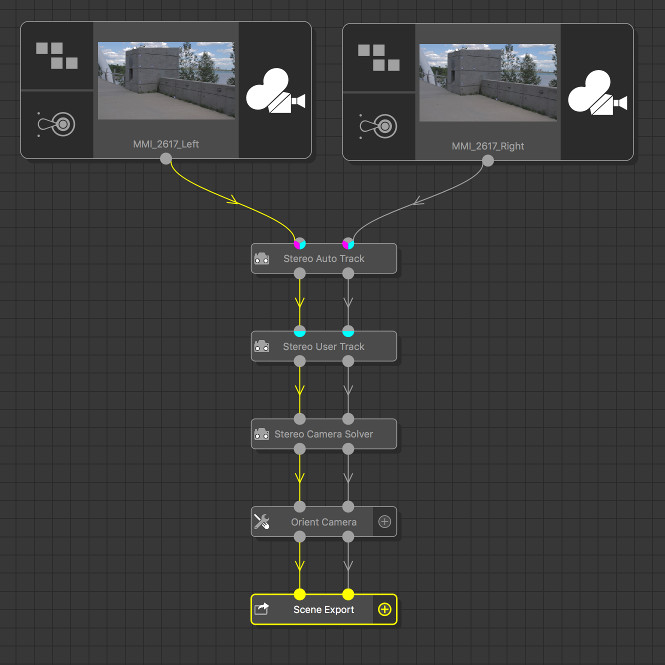

Tree with left eye and right eye clips and Stereo Auto Track, Stereo User Track, Stereo Camera Solver, Orient Camera and Scene Export nodes

1. Stereo Auto Track node to automatically track features in both the left and right-eye clips.
2. Stereo User Track node to manually track additional features in both the left and right-eye clips if necessary.
3. Stereo Camera Solver node to solve for both the left and right-eye camera paths and 3D tracker positions.
4. Orient Camera node to orient both the cameras and ground plane for the shot.
5. Scene Export node to export 3D trackers and both the left and right-eye cameras in the same scene file.

Building a Stereo Camera after Tracking

This example shows how the position of the right-eye camera in a stereo pair can be estimated after first tracking the left-eye camera.

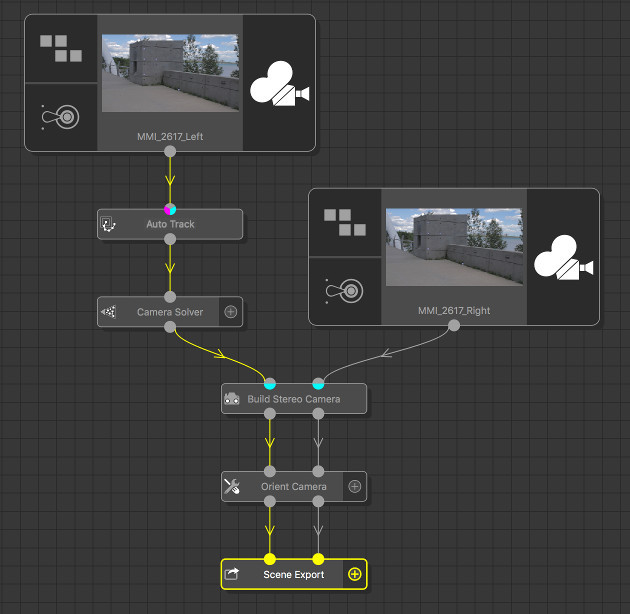

Tree where first the left eye clip is solved, then a Build Stereo Camera node used to add the right eye clip.

1. Auto Track node to track features in the left-eye clip.
2. Camera Solver node to solve for the motion of the left-eye camera.
3. Build Stereo Camera node to solve for the position of the right-eye camera relative to the left-eye.
4. Orient Camera node to position the ground plane.
5. Scene Export node to export 3D trackers and the left and right-eye cameras in a single file.

Adjusting Stereo Pair Images

This example shows how issues such as keystone alignment errors, colour mis-matches and disparity problems can be corrected.

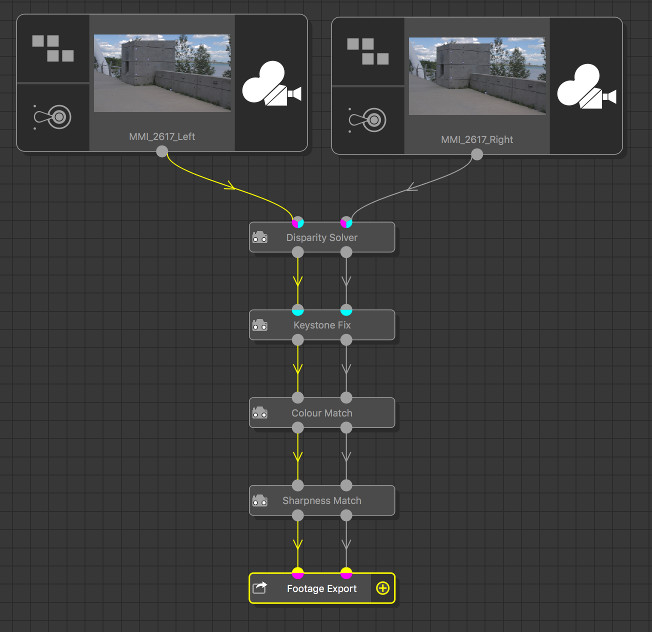

Tree with left and right eye clips connected to Disparity Solver, Keystone Fix, Colour Match, Sharpness Match, Disparity Adjust and Export nodes

1. Disparity Solver node to calculate the per pixel disparity between the left and right eye.
2. Keystone Fix node to correct the vertical disparity between the left and right eye.
3. Colour Match node to correct colour differences between the left and right eye clips.
4. Sharpness Match node to correct differences in sharpness between the left and right eye clips.
5. Footage Export node to export the corrected clips.
